Pockyt Hosted Checkout Page w/ SecurePay

Introduction

This solution enables customers to make payments through a secure, hosted checkout page. When a customer initiates payment, they are redirected to a cashier-facing URL where they complete the transaction using a digital wallet (e.g., Alipay, WeChat Pay, Paypal). The merchant system supports three key functions in this workflow:

1. Customer Registration: The merchant backend registers the customer with Pockyt to obtain a unique customerNo used for SecurePay transactions.
2. Hosted Checkout Initiation: A hosted checkout URL is requested from Pockyt’s API and presented to the customer to complete payment securely.
3. Transaction Confirmation: The payment status is confirmed via webhook notification or optional transaction query, allowing the merchant to finalize the order and update internal records.

🚧

Pre-requisites

Merchant Account Setup: Ensure the merchant has an account with Pockyt.

API Credentials: Obtain merchantNo, storeNo, and verifySign values from Pockyt.

Webhook Configuration: Set up webhook URLs to receive asynchronous transaction updates.

Merchants must handle PCI-DSS data according to their compliance level. Pockyt’s Hosted Page reduces PCI scope, but you are still responsible for maintaining compliance.

For AVS verification customers must be registered via the Register Customer API, as this data is used to verify cardholder details.

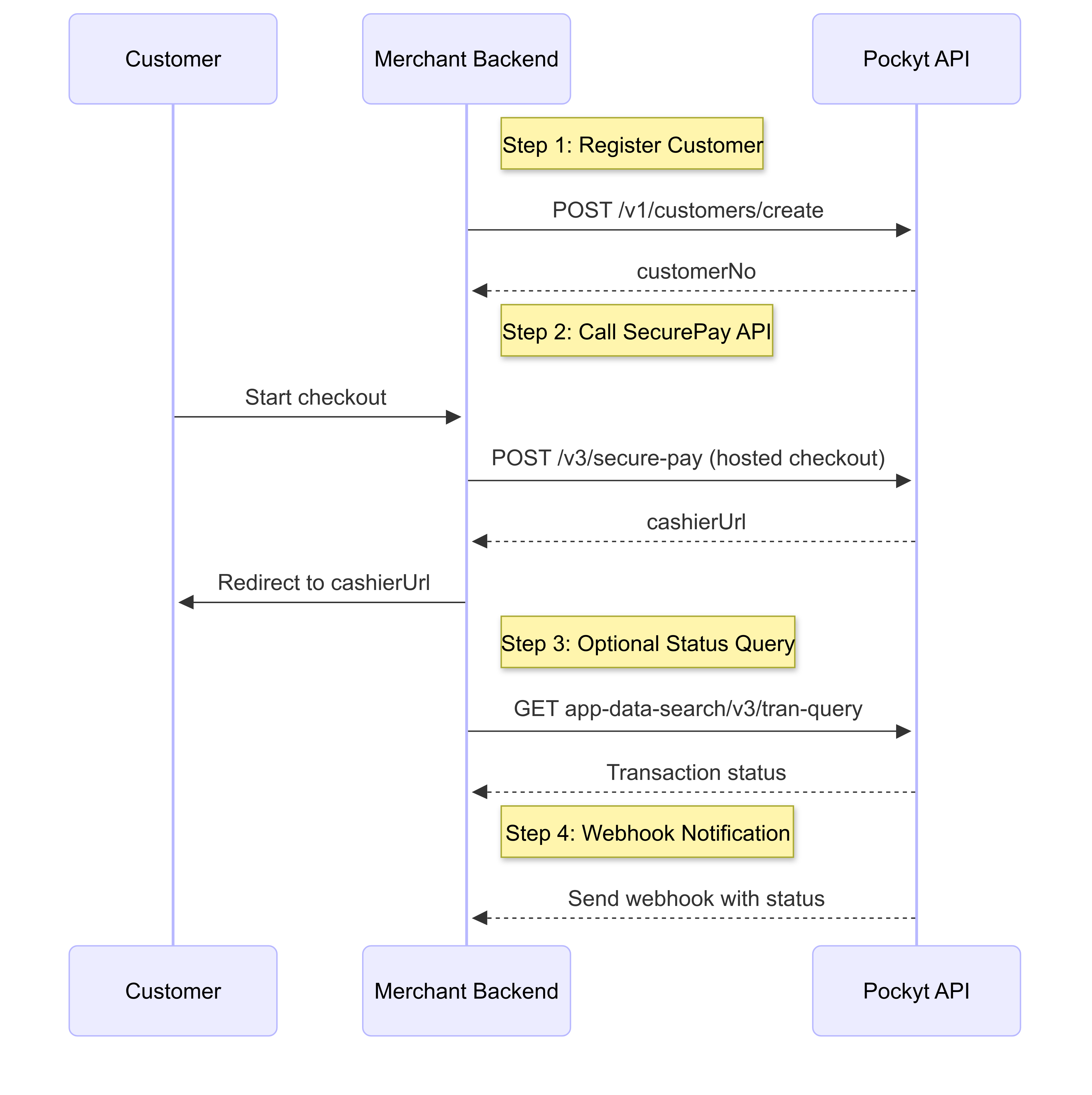

API Diagram

API workflow

📘

API References for Endpoints in this Workflow:

• Step 1 Register Customer /v1/customers/create
• Step 2 Secure-pay v3/secure-pay
• Step 3 Query Transaction Status
• Step 4 Handling Webhooks via IPN Url

Step-by-Step Hosted Checkout Workflow

Step 1: Register Customer

Action: The merchant backend registers the customer using the
POST /v1/customers/create endpoint.
This returns a customerNo that will be referenced in the SecurePay request.

Step 2: Initiate Hosted Checkout

Action: The customer initiates a checkout session.

1. The merchant backend calls the
   POST /v3/secure-pay endpoint with creditType: hosted.
2. The Pockyt API returns a cashierUrl.
3. The merchant redirects the customer to the cashierUrl to complete payment on the hosted page.

Step 3: (Optional) Query Transaction Status

Action: If webhook confirmation is delayed or not received, the merchant may query the transaction status using
POST app-data-search/v3/tran-query.

Use Case: This endpoint retrieves the transaction status using the original transaction number.

Step 4: Handle Webhook Notifications

Action: Pockyt sends a webhook to the merchant backend with the final transaction result.

• The webhook includes fields such as transaction number, status, and amount.
• The merchant should listen for this webhook on the URL defined in the ipnUrl parameter of the original request.

✅

Payments should only be considered complete after a "success" status is received via webhook or confirmed manually.
