Pockyt Hosted Checkout Page

Introduction

The recurring payments workflow enables merchants to store customer payment details securely for future use. Below are the key steps:

Register the customer in Pockyt’s system.
Capture payment details and enroll them for recurring use.
Process the initial payment and store the vault ID.
Use the stored vault ID for subsequent payments without re-entering payment details.
Handle asynchronous notifications through webhooks for transaction status updates.

🚧
Pre-requisites
Merchant Account Setup: Ensure the merchant has an account with Pockyt.
API Credentials: Obtain merchantNo, storeNo, and verifySign values from Pockyt.
Webhook Configuration: Set up webhook URLs to receive asynchronous transaction updates.
Merchants must handle PCI-DSS data according to their compliance level. Pockyt’s Hosted Page reduces PCI scope, but you are still responsible for maintaining compliance.
For AVS verification customers must be registered via the Register Customer API, as this data is used to verify cardholder details.

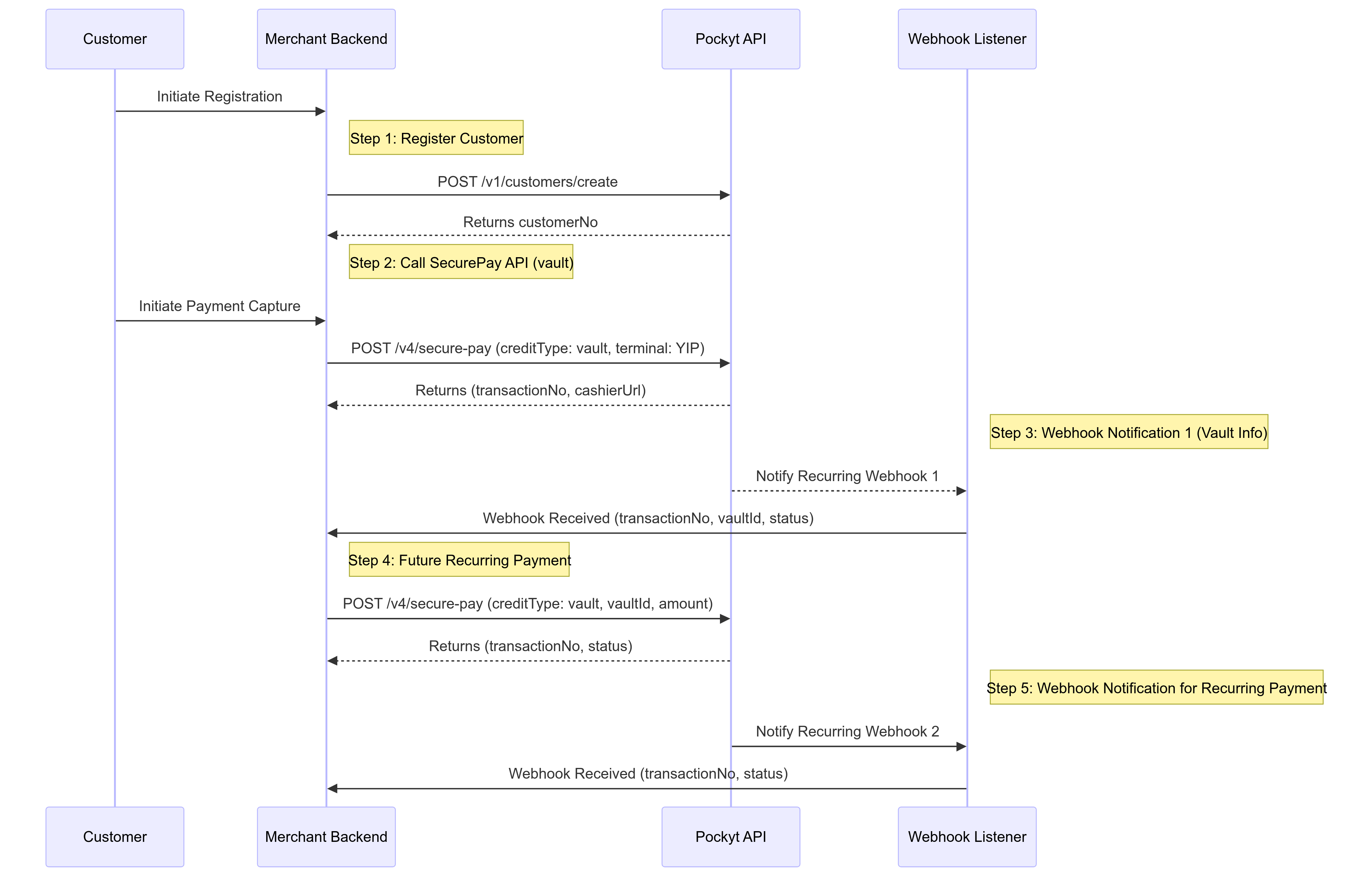

API Diagram

API workflow

📘
API References for Endpoints in this Workflow:

Step 1 Register Customer /v1/customers/create

Step 2 Vaulting Payment Methods with SecurePay /v3/secure-pay

Step 3 Handling Webhooks via IPN Url

Step 4 Finalize Payment of First Transaction /v3/process

Step 5 Collect Future Payments with VaultID via SecurePay click the example request with vaultId

Step 6 Step 6: Handle Webhook Notification for Recurring Payments

Step-by-Step Description of the Recurring Payments Workflow

Step 1: Register Customer

Action: The Merchant Backend calls the Register Customer API to create a new customer in the Pockyt system. This step generates a unique customerNo, which will be used in subsequent steps. Pockyt captures information necessary for Address Verification Service (AVS) here.
Endpoint: POST /customers/create
Key Parameters:
- Request Body: Includes customer information such as name, email, phone number, and address.
- Response: Returns a customerNo, which is critical for linking this customer to payment actions.

Step 2: Initiate Payment (Vault)

Action: The Merchant Backend calls the SecurePay API with the creditType set to vault and terminal set to "YIP" to enroll the payment method. This step links the customer's payment method to a billing agreement shown in the checkout UI but does not charge the payment method. The response includes a transactionNo and cashierUrl. A separate webhook contains a vaultId, which serves as the payment token.
Endpoint: POST /online/v4/secure-pay
First Time Calling SecurePay for Creating VaultId

curl -X POST "https://mapi.yuansferdev.com/online/v4/secure-pay" \
     -H "Content-Type: application/json" \
     -d '{
       "amount": "13.00",
       "creditType": "vault",
       # "creditType" must be "vault" to store the payment method for future use.

       "currency": "USD",
       "customerNo": "2000357955353018248632",
       # "customerNo" is obtained from the previous step (customer registration).

       "callbackUrl": "https://demo.pockyt.io",
       "merchantNo": "203780",
       "reference": "PDo2hzWE70",
       "settleCurrency": "USD",
       "storeNo": "303661",

       "terminal": "YIP",
       # "terminal" must be set to "YIP" for vaulting to work correctly.
       # Setting it to "ONLINE" would change the endpoint behavior and may prevent vaulting.

       "timeout": "120",
       "ipnUrl": "https://apis.gwocu.com/api/webhook/listen/RecurringPayments?apiKey=ihk4vdfnh9tdyuq11vreacne4ituhapf",

       "vendor": "paypal",
       "verifySign": "{{MySignature}}",

       "goodsInfo": "[{\"goods_name\":\"test\",\"quantity\":\"1\",\"category\":\"DIGITAL_GOODS\",\"description\":\"testing\",\"amount\":\"13.00\",\"tax\":\"0\"}]"
     }'

Key Parameters:
- Request Body: Includes the customerNo from Step 1, the terminal value (YIP), and payment details.
- Response: Returns a transactionNo and cashierUrl. Additionally, the webhook received after this step contains a vaultId, which acts as the payment token for the associated payment method. However, the payment method is not charged at this stage. The actual charge occurs in the next step when the /process API is called using the transactionNo returned here.

🚧
This step does not charge the payment method. Instead, it acts as an 'enrollment step,' during which the customer is presented with a 'billing agreement' in the checkout UI. The customer confirms this agreement, linking it to their payment method.

Step 3: Handle Webhook Notification

Action: The webhook is triggered once the customer accepts the billing agreement in the checkout UI. However, the payment method has not been charged yet.
Purpose: The webhook contains the transactionNo, which is required for charging the payment method in the next step via the /process API. It also includes the vaultId, which should be saved for future use, though it is not fully activated until the /process API is called.
See Example Webhook Notification Body Here

Step 4: Process Payment Transaction

Action: The Merchant Backend calls the Process Payment API to finalize the initial payment. This is the step where the payment method is charged for the first time.
Endpoint: POST /order/v4/process
Key Parameters:
- Request Body: Includes the transactionNo from Step 2.
- Response: Returns a vaultId linked to the payment method and confirms that the payment was processed. The vaultId will be used for all future recurring payments.

👍
The Payment Method is charged for the first time at this step

Step 5: Collecting Future Recurring Payments

Action: For future payments, the Merchant Backend calls the SecurePay API again, this time with the creditType set to vault and the vaultId included in the request body.

Endpoint: `POST /online/v4/secure-pay
Calling SecurePay After the initial Enrollment, to Collect Future Payments

curl -X POST "https://mapi.yuansfer.yunkeguan.com/online/v4/secure-pay" \
     -H "Content-Type: application/json" \
     -d '{
       "amount": "13.00",

       "callbackUrl": "https://demo.pockyt.io/",

       "creditType": "vault",
       # "creditType" is still set to "vault," but in this case, the stored payment method is actually charged.

       "currency": "USD",
       "customerNo": "2000357955353018248632",
       # "customerNo" ensures the transaction is associated with the correct customer profile.

       "ipnUrl": "https://apis.gwocu.com/api/webhook/listen/RecurringPayments2?apiKey=82rjlr54jkqii2gxin7cbol14kou7jbt",

       "merchantNo": "203780",
       "note": "test note",
       "reference": "a7HhrLJYH9",
       "settleCurrency": "USD",
       "storeNo": "303661",

       "terminal": "YIP",
       # "terminal" must be set to "YIP" for recurring payments. Using "ONLINE" will result in different behavior.

       "timeout": "120",

       "vaultId": "pp_9cb9eb1892da49d2867c3d41bd73fedc",
       # "vaultId" is the payment token obtained from the previous /process API call.
       # Unlike the initial SecurePay request, this call DOES charge the payment method.

       "vendor": "paypal",
       "verifySign": "{{MySignature}}",

       "goodsInfo": "[{\"goods_name\":\"test\",\"quantity\":\"1\",\"category\":\"DIGITAL_GOODS\",\"description\":\"testing\",\"amount\":\"13.00\",\"tax\":\"0\"}]"
     }'

Key Parameters:
- Request Body: Includes the vaultId obtained in Step 4 and payment details such as amount and currency.
- Response: Returns a transactionNo for the recurring payment. Note that the payment method is charged immediately when this API is called with the vaultId.

Step 6: Handle Webhook Notification for Recurring Payments

Action: The Webhook Listener receives a second webhook notification from Pockyt, confirming the status of the recurring payment.
Purpose: This step ensures the Merchant Backend is notified of the success or failure of the recurring payment.
See Example Webhook Notification Body Here

Key Notes for Implementation

Parameters Flow:
- customerNo: Generated in Step 1, used in Step 2.
- transactionNo: Generated in Step 2, used in Step 4.
- vaultId: Generated in Step 4, used in Step 5.
Payment Processing Logic:
- The payment method is not charged during the initial SecurePay API call (Step 2). It is only charged when the Process Payment API is called (Step 4).
- For future payments, the payment method is charged as soon as the SecurePay API is called with the vaultId (Step 5).
Webhook Notifications:
- Webhook notifications are crucial for confirming the status of transactions in Steps 3 and 6. Ensure the Webhook Listener processes the transactionNo and status fields properly.
